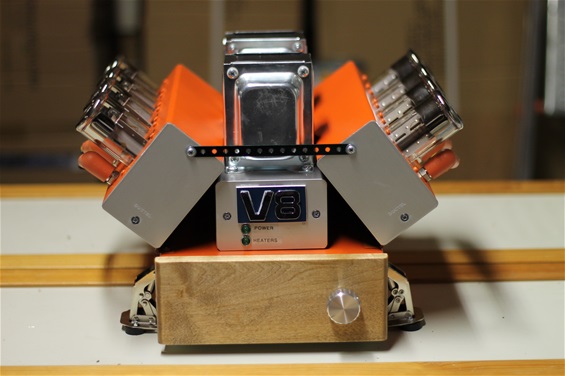

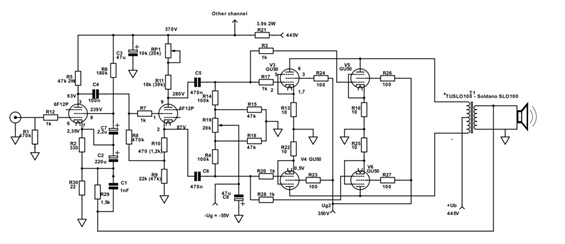

Amplifier schematic

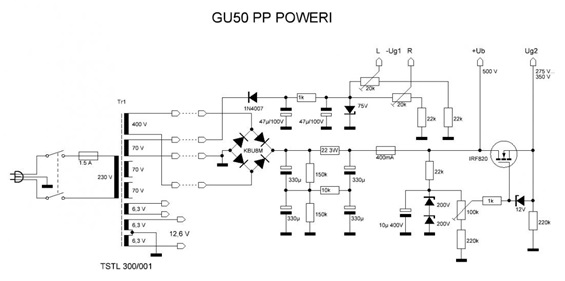

Power supply schematic

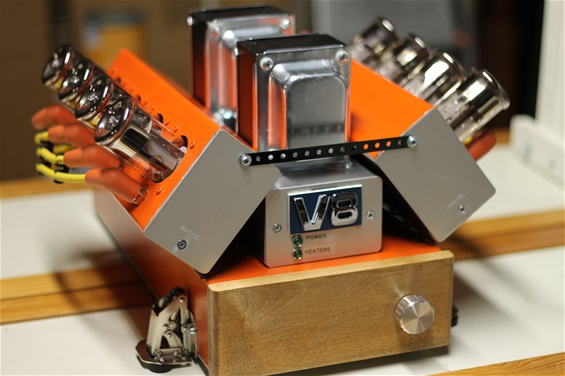

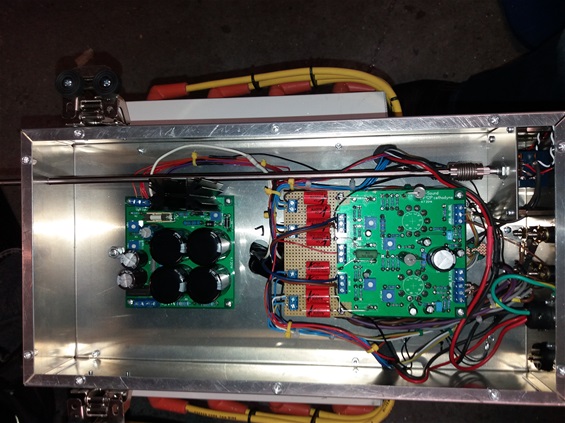

Chassis lay out ready

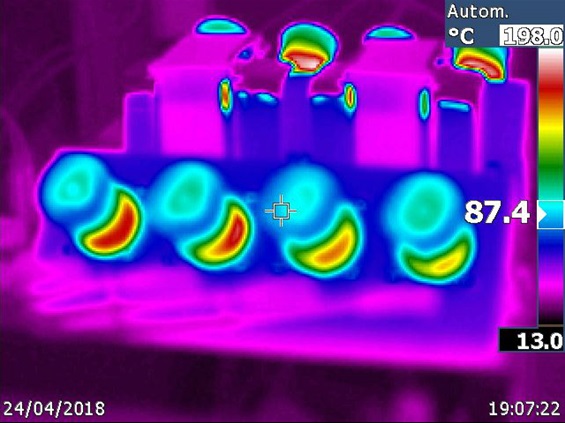

"Heat is on"

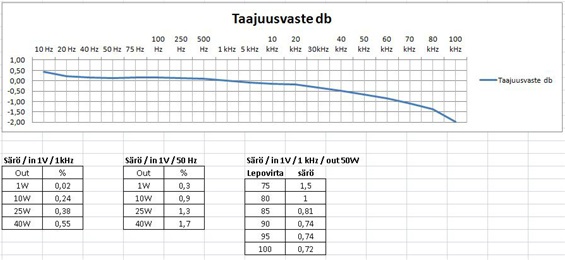

Frequency response. THD vs. power @1KhZ. THD vs. power @50Hz. THD vs. idle current @50W.

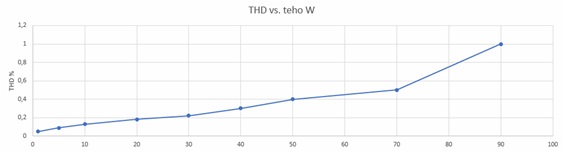

THD vs. power

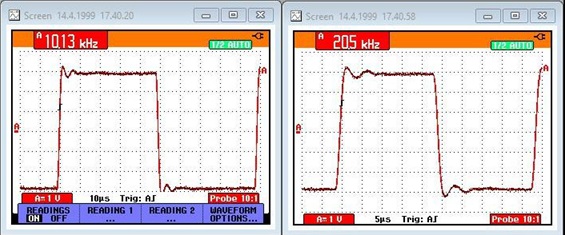

Square wave @1W / 10kHz and 20kHz

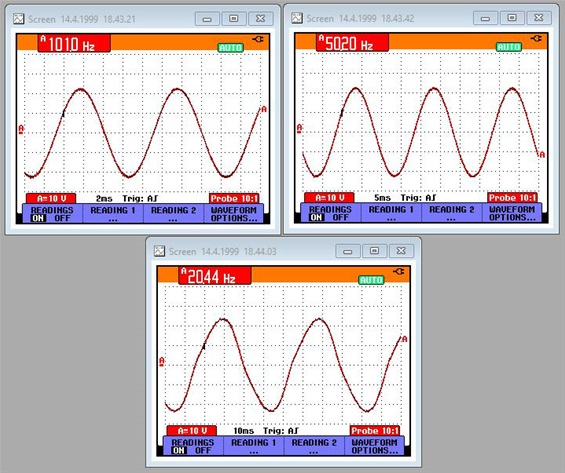

Sine wave at 30W power. 100Hz / 50Hz / 20Hz

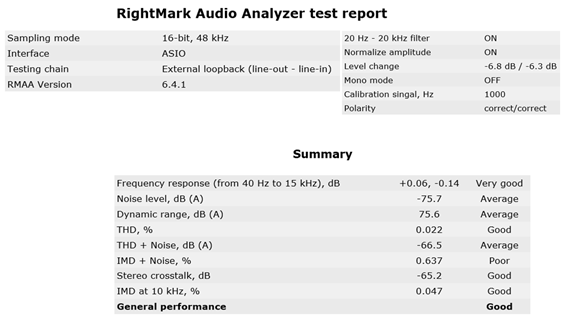

RMAA analysis
|
|
|
