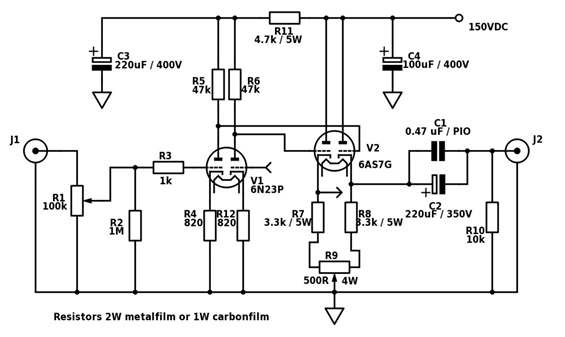

6N23P-6AS7G Headphone/preamp

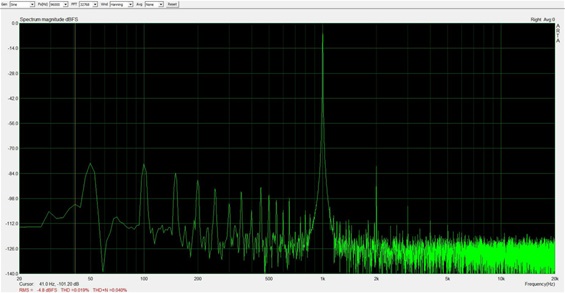

THD 1 kHz

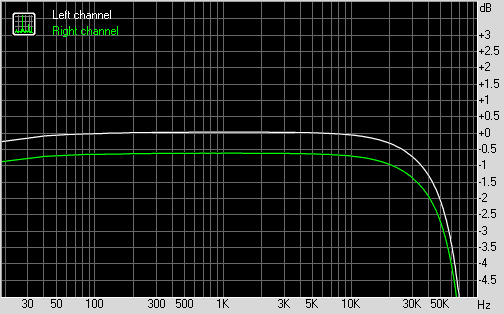

Taajuusvaste

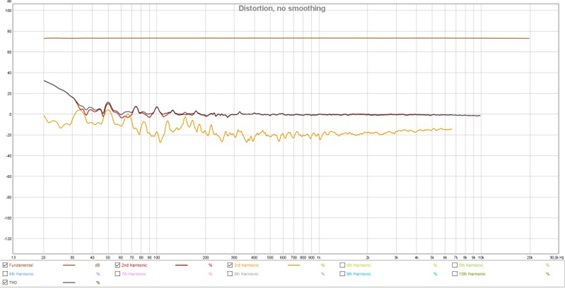

THD 20Hz - 20kHz
RightMark Audio Analyzer test report | Testing device | Жпгхутйфе ХУВ БУЙП |
| Sampling mode | 16-bit, 192 kHz | | Interface | ASIO | | Testing chain | External loopback (line-out - line-in) | | RMAA Version |
6.4.1 | | | | | | | | 20 Hz - 20 kHz filter | ON | | Normalize amplitude | ON |
| Level change | -1.3 dB / -1.9 dB | | Mono mode | OFF | | Calibration singal, Hz | 1000 | | Polarity | inverted/inverted |
Summary | Frequency response (from 40 Hz to 15 kHz), dB | -0.63,
-0.83 | Very good | | Noise level, dB (A) | -87.5 | Good | | Dynamic range,
dB (A) | 87.4 | Good | | THD, % | 0.032 | Good | | THD
+ Noise, dB (A) | -67.4 | Average | | IMD + Noise, % | 0.042 | Good | | Stereo crosstalk, dB | -69.6 | Good | | IMD at 10 kHz, % | 0.028 | Good
| | General performance | | Good |
|
|
|
