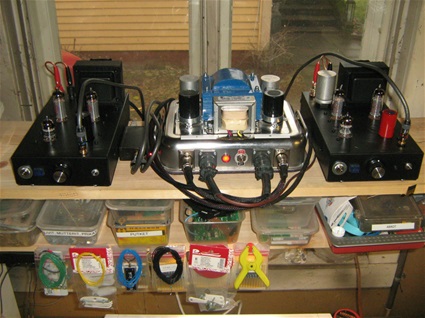

12W PP UL Mono (2 pcs.)

Negative feedback ~7dB / ~14dB
Sensitivity 125 mV
Output power 12 W 1 % distorsion
Distorsion: 1 watt / 0,012 %

Schematic is modified from Mullard 5-10 tube amplifier.
http://www.r-type.org/articles/art-003e.htm

PSU

One amplifier
